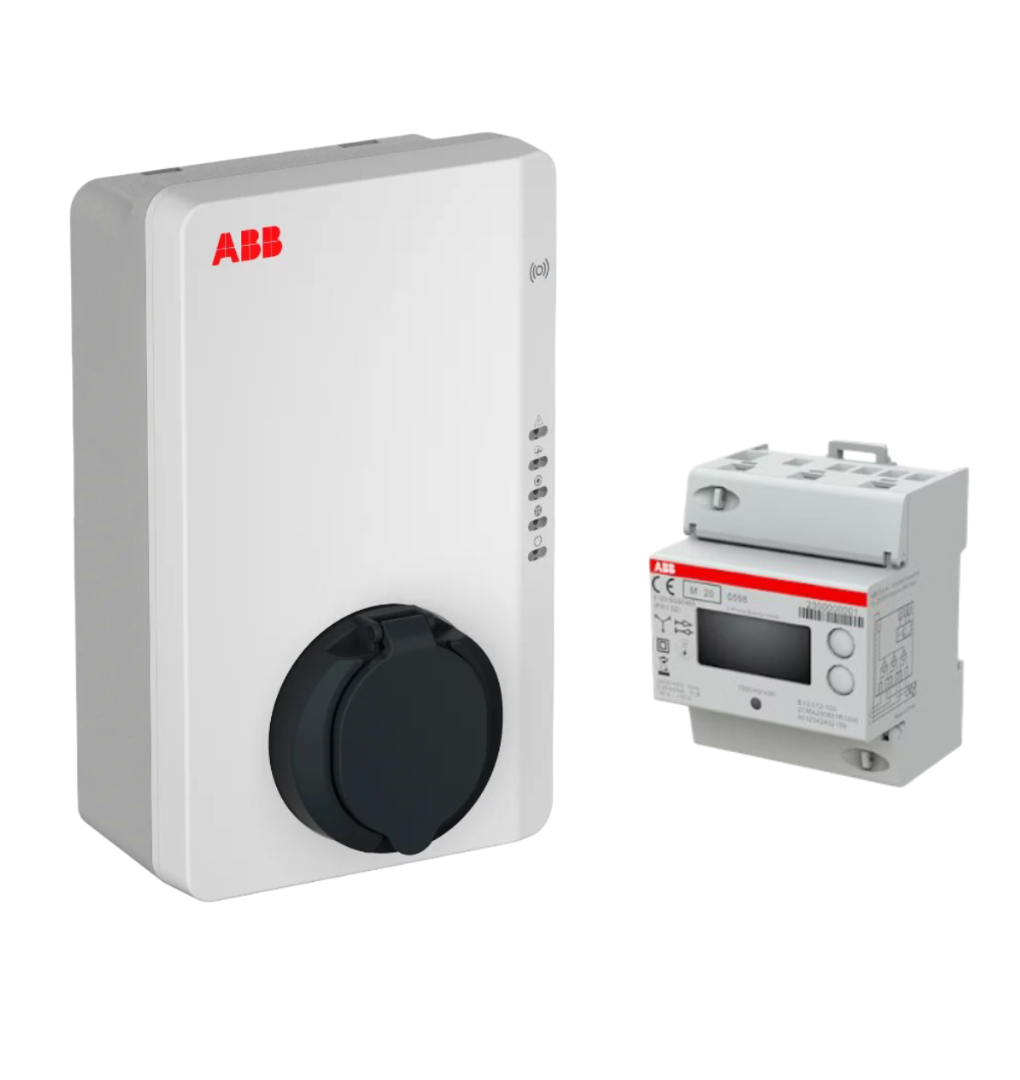

ABB Terra AC Wallbox 22 kW +EV3 012-100 3-phase Energy-Meter
High-value quality
• One of the best-value charger on the market
• Broad range of connectivity options
• Space-saving and easy-to-install design
📦 What’s in the box
- Terra AC Wallbox – 22 kW, Type-2 socket with shutter & RFID, Wi-Fi/LAN, OCPP 1.6
- EV3 012-100 Smart Energy-Meter – 3-phase, 5-65 A direct-connected, MID Class 1 /B, Modbus RTU, DIN-rail mount
- Installation kit & quick-start guides
🔑 Key Advantages
Plug-and-play load balancing – charger auto-discovers the EV3 meter via RS-485 and throttles current in real time
Certified accuracy – MID compliance ensures billing-grade kWh data from the meter :contentReference
Single-vendor warranty – both devices backed by ABB’s support network
⚙️ Technical Snapshot
Terra AC Wallbox + EV3 012-100 Meter
Max power | 22 kW (3-phase × 32 A)
Comms | LAN · Wi-Fi · Bluetooth · RS-485 · OCPP 1.6 | RS-485 (Modbus)
Metering | external | Active energy import/export
Accuracy | – | Class 1 / B (MID)
Protection | DC GF, OVP, OCP | IP21 enclosure
Mounting | Wall | 4-TE DIN-rail |
Safety and protection
• Evaluated and tested by independent third party to meet the highest standards
• Current limiting protection prevents against nuisance tripping and over current to the installation
• Integrated protections including DC ground fault and over voltage
Load management
• Built-in energy meter
• Manual or automated (dynamic) load management
• Setup for external energy meter integration for dynamic load management
• Ready for integration with advanced smart building energy system
Future proof flexibility
• Smart functionality for optimised charging
• Energy meter integration for dynamic load management
• Dedicated App for control and configuration
• Remote software update enabled
🧠 Smart Functionality
– ChargeSync app – set tariffs & peak-shaving schedules (save €100–300 / yr)
– Dynamic load management – real-time current adjustment based on household load
– Remote firmware updates – future features delivered over-the-air
*Typical evening-peak premiums: 25–40 % (18:00–22:00); savings vary by tariff.
ChargeSync user App for Terra AC control, status and configuration
Station setup:
[ux_video url=”https://www.youtube.com/watch?v=9tBaVWj7mHI”]
Charging status:
[ux_video url=”https://www.youtube.com/watch?v=ZDbrLx06yh0″]
Terra AC product Brochure:
ABB_Terra_AC_wallbox_Brochure_A4
PLEASE NOTE – for Terra AC models with display TWO WEEK delivery time
| Brand | ABB |
|---|---|
| Communication | Ethernet, OCPP 1.6, WiFi |
| Number of sockets | 1 |
| Phases | 1 phase, 3 phases |
| Power (kW) | 22 |
| Socket | Type 2 |
| Stainless Housing | Plastic |
| Leakage current protection | Integrated |
| Dimensions ( Width x Height x Depth ) | 195 x 320x 110 mm |
| Manufacturer | ABB |
| Weight | 2 kg |
| Impact resistance | IK10 (IK8+ for operating temperature from -35 to -30 °C) |
| Operational temperature | -35…+50 °C (derating may apply) |
| Lifetime | 10 years. 16 h charging, 8 h standby, 5 charge sessions per day |
| Connector | Socket- Type 2 |
| Display | Yes |
| Integrated Cable | Type 2 socket |
| RFID | Yes |
| Dynamic Power balancing | Yes, with SmartMeter |
| OCPP ready | Yes |
| Smart control via | App |
| Warranty | 24 months |
| Charging schedule | Yes |
| Operating Temperature | -35'C to +50'C |
