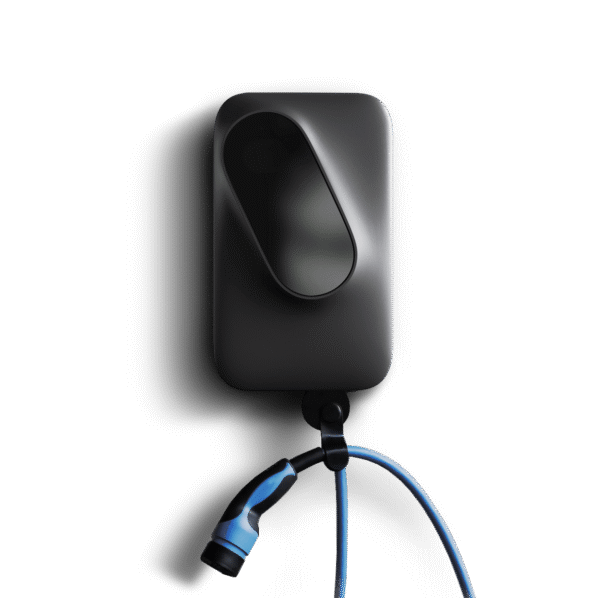

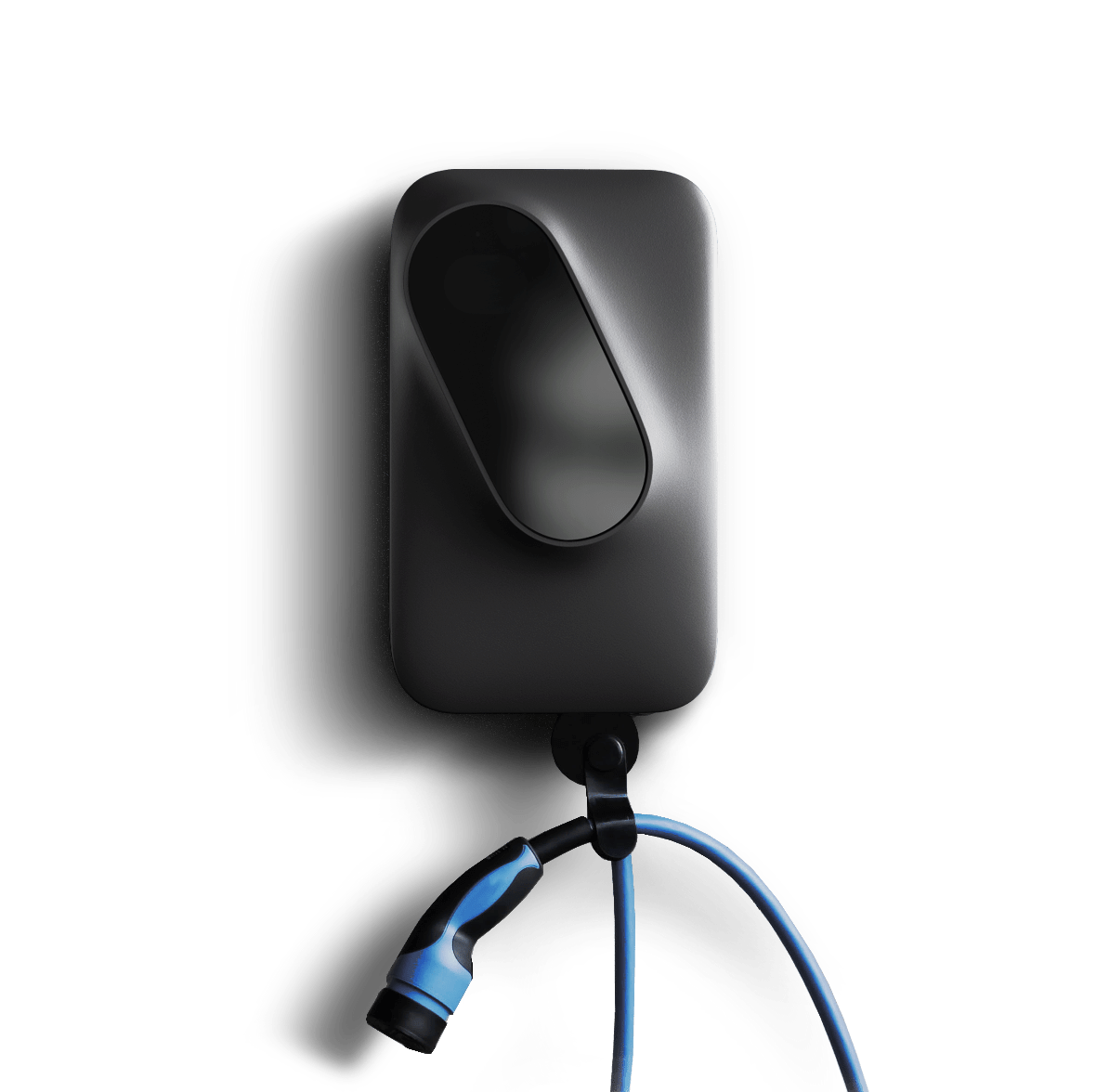

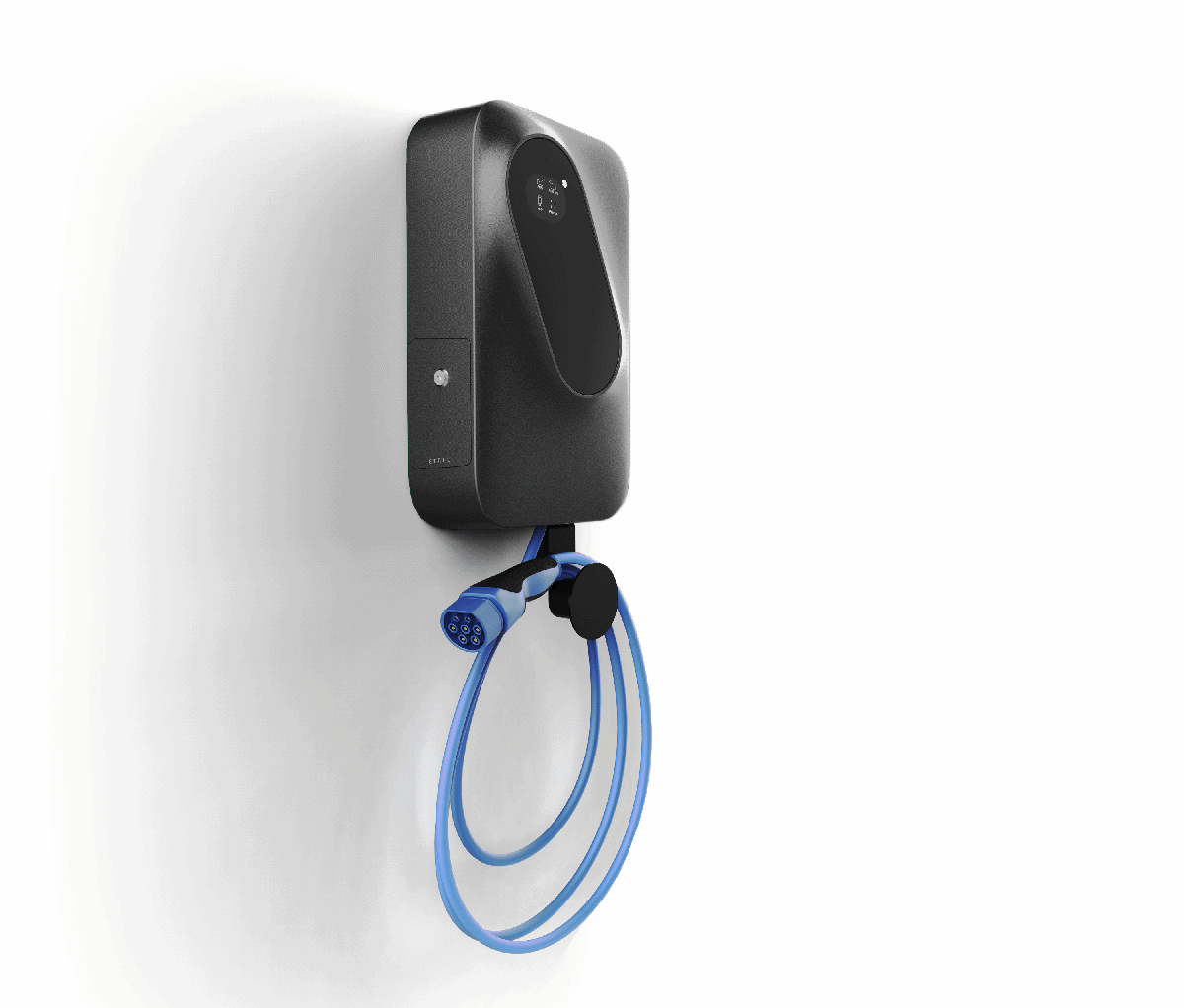

Etrel INCH PRO 22 kW Type 2 cable 4G, MID meter, RFID (Grey) – Everything necessary for EV charging – Hardware and Software!

Etrel INCH PRO 22 kW Type 2 cable 4G, MID meter, RFID (Grey)

Original price was: 1,399.00$.Current price is: 1,199.00$.
  • Delivering up to 22 kW of AC power
  • Power-price friendly. Set the charger to react and vary charging speeds when the power price is high or low.
  • Advanced load control.
  • By adding Load Guard you’ll enjoy the fastest possible charging, and never blow the fuse.

1 in stock

Quantity:

1 in stock

[ux_video url=”https://www.youtube.com/watch?time_continue=117&v=Qblegoqccyk&feature=emb_logo”]

Etrel INCH Pro model (G-PC1VBFY40) key features:

  • Delivering up to 22 kW of AC power

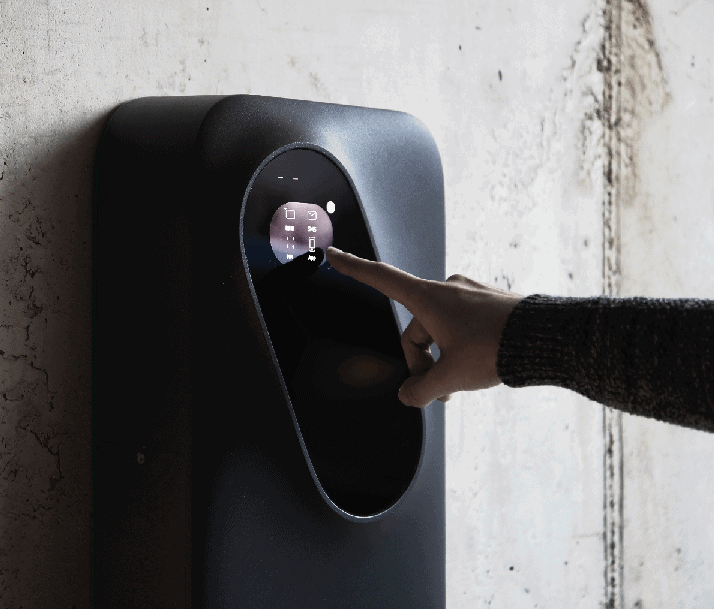

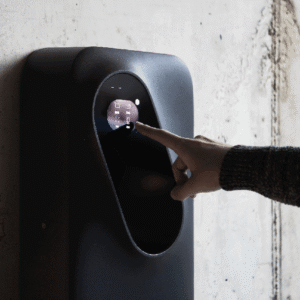

  • Programable display – set a PIN code for access or program a timer to avoid peak hour charging. RFID identification is also available. The user interface, with support for multiple languages, is easy to use and provides all the necessary information for first-time and advanced users alike.
  • RCD (included) – residual current device, is a life-saving device which is designed to prevent you from getting a fatal electric shock if you touch something live, such as a bare wire. It can also provide some protection against electrical fires. RCDs offer a level of personal protection that ordinary fuses and circuit-breakers cannot provide.
  • Display – The user interface, with support for multiple languages, is easy to use and provides all the necessary information for first-time and advanced users alike.
  • Advanced load control. The Load Guard sensor (ordered separately) – a sensor that goes on your fuse board to monitor the total active power being used by the home – will adjust the amount of power it gives your car, depending on the other power demands in your home, like heating. By adding Load Guard you’ll enjoy the fastest possible charging, and never blow the fuse.

  • Intelligence. The charger learns and predicts your departure time. When in a hurry, choose fast charging with the touch of a finger.

  • Power-price friendly. Set the charger to react and vary charging speeds when the power price is high or low.

  • Connectivity options – Etrel INCH Pro has Ethernet cable, LTE, Wifi (optional) connectivity and open protocol support – meaning it can be linked to future charging platforms – the charger can be seamlessly integrated into your smart home or facility.

  • Durable. This charger is weatherproof and designed to last. With a cast aluminium housing, your charger is prepared for even the toughest environments and includes a shatter proof acrylic glass plate.

Technical specifications:

Etrel INCH PRO General Data Sheet

INCH PRO Brochure:

Etrel INCH PRO brochure

Brand

Etrel

Power (kW)

22

Number of sockets

0

Number of plugs

1

Phases

1 phase, 2 phases, 3 phases

Energy Meter

Digital

Degree of protection

IP54

Impact resistance

IK08

Stainless housing

Aluminium, cover plate Polycarbonate Lexan.

UV resistant

Yes

Certificate

CE

Charging cable locking

Optional

Leakage current protection

Integrated

Weight

8.2 kg

Dimensions ( Width x Height x Depth )

270x450x135 mm

Manufacturer

Etrel (Slovenia)

Brand and Model

Etrel Inch

Integrated Cable

Type 2 cable

Charging schedule

Yes

Communication

4G, Ethernet

Connector

Cable Type 2

Dynamic Power balancing

Yes

Operating Temperature

-20 °C to +50 °C

OCPP ready

Yes

RFID

Yes

Smart control via

App, web Dashboard

Warranty

24 months
